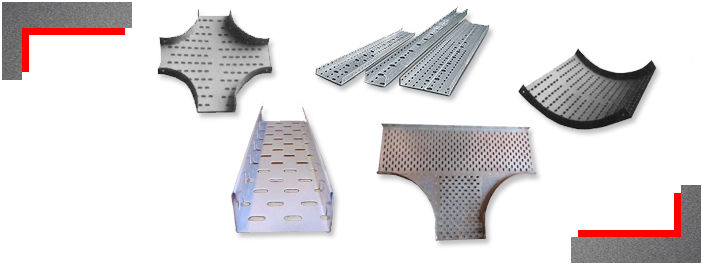

Perforated Cable Trays

′SQUARE SYSTEM′ offers a wide range of perforated cable trays manufactured using the latest technology which provides them a fine finish. Cable Trays are used to hold up and distribute cables. Perforated cable trays can be hung using a center rod support, C-hanger or two-trapeze configuration. They can also be mounted on wall using brackets. For further security, these cable trays are also available with covers. These perforated cable trays are available in various finishes such as epoxy coated, red Oxide, hot dip galvanized, powder coated or painted pre-galvanized.

Our clients can avail from us customization for the range of Tee Bend Ladder Cable Trays as per their individual specifications. Furthermore, these trays consists of rungs, which are two longitudinal side rails connected by individual transverse members. These trays are 100mm to 450mm wide and 50mm in height. Moreover, our trays are 1.6mm and 2mm SWG in thickness with all accessories.


• These can be supplied as per Client's drawings and specifications

• In all projects cable trays are most popular for cable laying as they are easy to install and can be fixed to any structure.


SQUARE Perforated Cable Tray Specification:

S.No. Height Width Length
1 50mm 100mm 2.5mt
2 50mm 150mm 2.5mt
3 50mm 200mm 2.5mt
4 50mm 225mm 2.5mt
5 50mm 300mm 2.5mt
6 50mm 450mm 2.5mt

* Thickness available in 1.6mm and 2mm.
